Joining Technologies will periodically list equipment for sale as our business grows. If you’re looking for used precision welding equipment, keep an eye on this page for our latest listings!

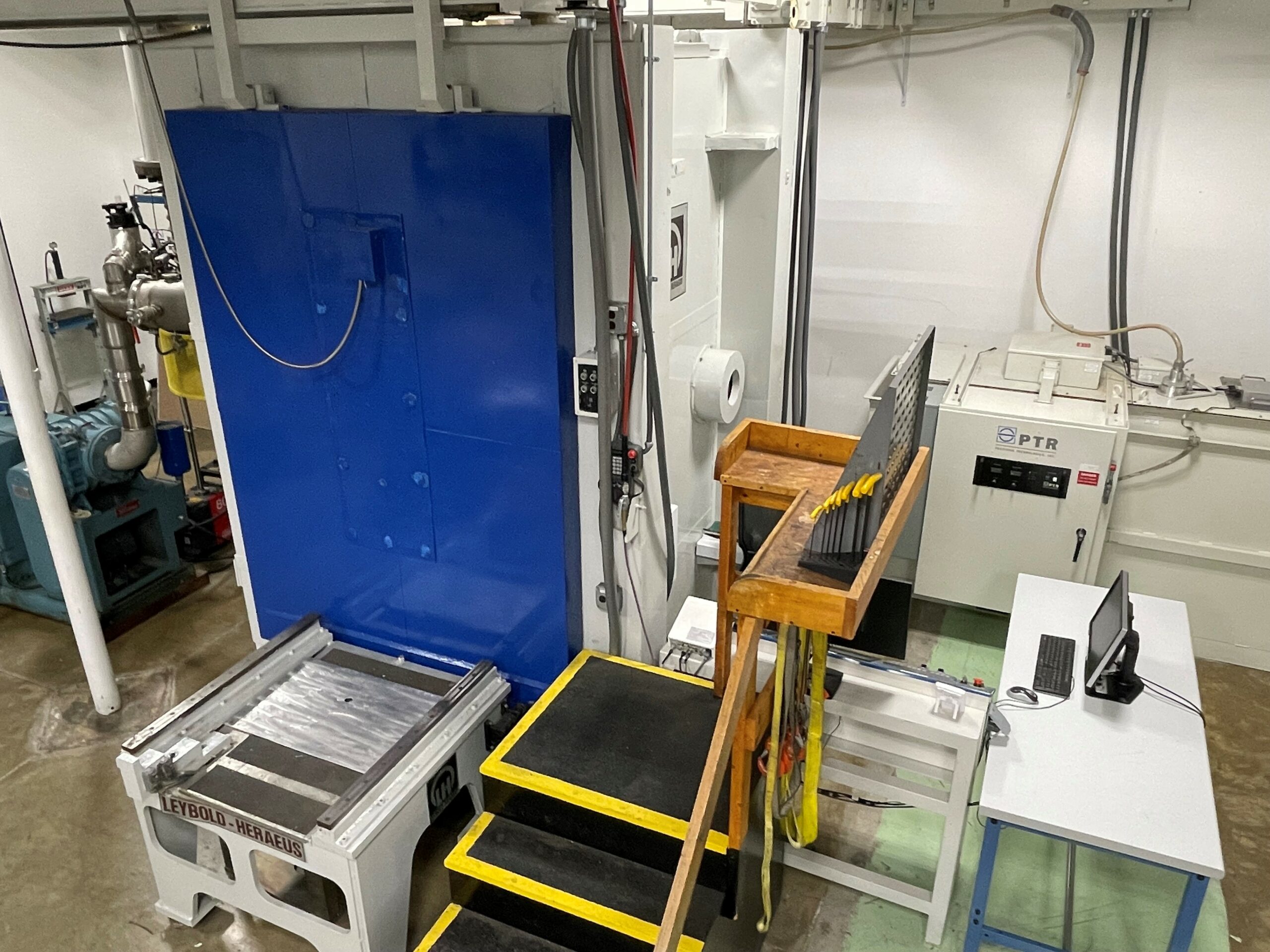

2013 Leybold 25KW High Voltage, CNC Controlled Electron Beam Welding System

Joining Technologies is looking to sell its Leybold 25KW High Voltage, CNC Controlled Electron Beam Welding System.

Chamber size: 89″ high, 79″ deep, 63″ wide.
EB gun: There is a side-mounted gun that can be moved to the top of the chamber.
Serial Number: 672
Condition: Like new
Power supply: Retrofit 25 KW solid state high voltage power supply
System control: Retrofit FANUC CNC Controller
Beam deflection: New, retrofit digital function generator (CNC Controlled)
Motion: CNC X and Z axis, heavy duty CNC Controlled Rotary
Table Runout System: Motorized runout table
Pump package: Stokes 412-11 Rougher and Roots blower

Interested in buying? Please contact Greg Miller at (860) 653-0111 x 234, gmiller@joiningtech.com, or click here to schedule a meeting.
